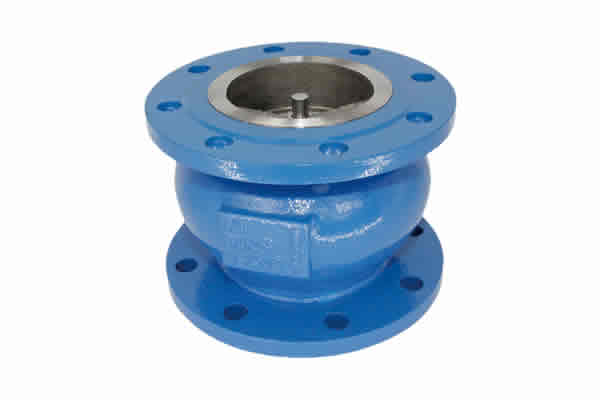

Silent check valve flanged end PN16

Silent check valve flanged end PN16

Working pressure:

PN16

Face to face :

BS5153

Flange to

ANSI B16.1

Test and Inspection:

API598


0.00
0.00

Product Description

Working pressure:

PN16

Face to face :

BS5153

Flange to

ANSI B16.1

Test and Inspection:

API598





O-ring seal

EPDM

Seat

CF8M/Bronze

Disc

CF8M/Bronze

Spring

SS04/SS316

Body

Cast iron

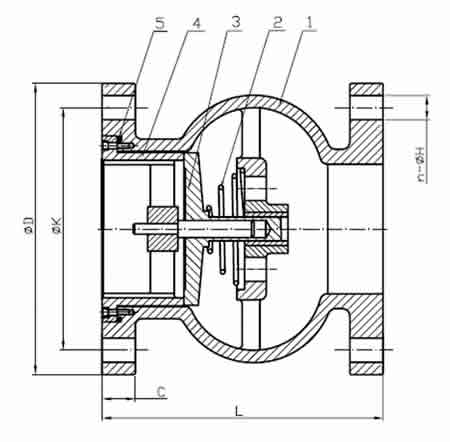

Parts

Material


Dimension:


SIZE

L

￠D

￠K

C

n-￠H

2”

DN50

159

152.4

120.6

15.75

4-19

2.5”

DN65

178

177.8

139.7

17.53

4-19

3”

DN80

190.5

190.5

152.4

19.05

4-19

4”

DN100

216

228.6

190.5

23.88

8-19

5”

DN125

241

254

215.9

23.88

8-22

6”

DN150

267

279.4

241.3

25.4

8-22

8”

DN200

343

342.9

298.4

28.45

8-22

10”

DN250

413

406.4

361.9

30.23

12-25

12”

DN300

514

482.6

431.8

31.75

12-25
