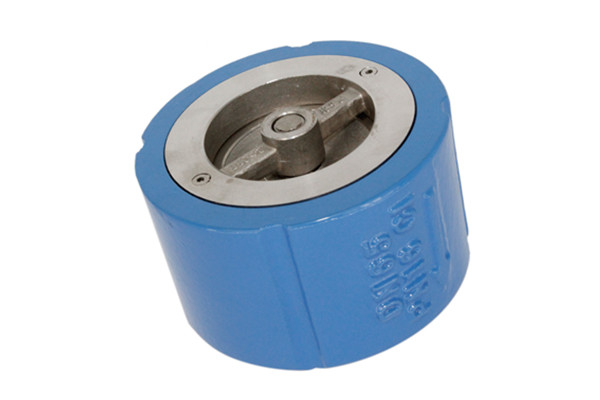

Silent check valve wafer type PN16

Silent check valve wafer type PN16

Working pressure:

PN16

Face to face :

BS5153

Flange to

ANSI B16.1

Test and Inspection:

API598


0.00
0.00

Product Description

Working pressure:

PN16

Face to face :

BS5153

Flange to

ANSI B16.1

Test and Inspection:

API598





O-ring seal

EPDM

Seat

CF8M/Bronze

Disc

CF8M/Bronze

Spring

SS04/SS316

Body

Cast iron

Parts

Material

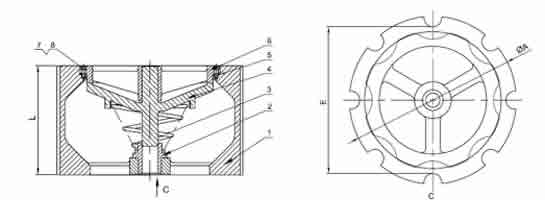

Dimension:


SIZE

L

￠A

E

2”

DN50

67

108

106

2.5”

DN65

73

128

124

3”

DN80

79

145

141

4”

DN100

102

178

161

5”

DN125

118

212

187

6”

DN150

141

246

217

8”

DN200

165

340

272

10”

DN250

210

402

327

12”

DN300

285.8

485.8

410
