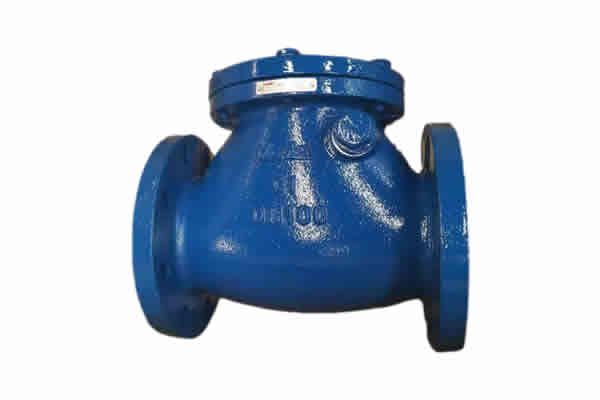

Swing check valve BS5153 PN16

Swing check valve BS5153 PN16

Design standard

BS5153

Face to face :

BS5153

Flange to

BS4504 PN16

Working Pressure:

PN16

Test and Inspection:

API598


0.00
0.00

Product Description

Design standard

BS5153

Face to face :

BS5153

Flange to

BS4504 PN16

Working Pressure:

PN16

Test and Inspection:

API598





Side Plug

Brass

Stem

SS420

Body gasket

NBR/EPDM

Disc ring

Bronze/RUBBER

Split pin

SS410

Disc

Cast iron

Seat ring

Bronze/SS304

Body

Cast iron

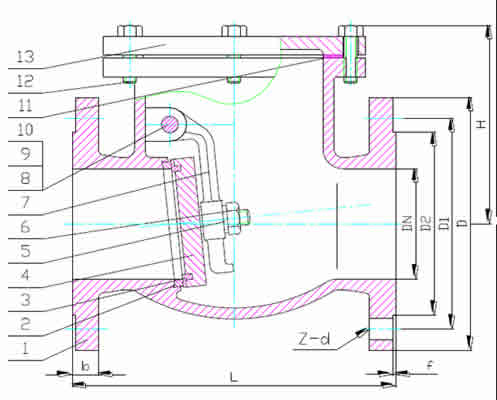

Parts

Material



Dimension:


SIZE

L

D2

D1

D

z-￠d

H

2”

DN50

203

99

125

165

4-19

137

2.5”

DN65

216

118

145

185

4-19

147

3”

DN80

241

132

160

200

8-19

159

4”

DN100

292

156

180

220

8-19

180

5”

DN125

330

184

210

250

8-19

203

6”

DN150

356

211

240

285

8-23

223

8”

DN200

495

266

295

340

12-23

258

10”

DN250

622

319

355

400

12-28

290

12”

DN300

698

370

410

455

12-28

325

14”

DN350

787

429

470

520

16-28

361

16”

DN400

914

480

525

580

16-31

388
