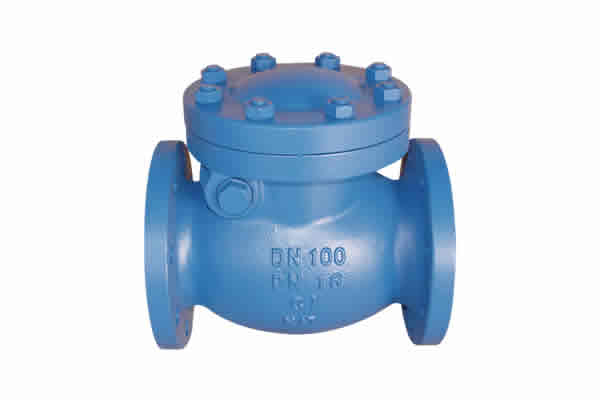

Swing check valve MSS SP-71　PN16

Swing check valve MSS SP-71　PN16

Design standard

MSS SP-71

Face to face :

ANSI   B16.10(125lb)

Flange to

ANSI B16.10(125lb)

Working Pressure:

125S,200WOG

Test and Inspection:

API598


0.00
0.00

Product Description

Design standard

MSS SP-71

Face to face :

ANSI   B16.10(125lb)

Flange to

ANSI B16.10(125lb)

Working Pressure:

125S,200WOG

Test and Inspection:

API598





Side Plug

Brass

Body gasket

NBR/EPDM

Disc ring

Bronze

Split pin

SS410

Disc

Cast iron

Seat ring

Bronze

Body

Cast iron

Parts

Material

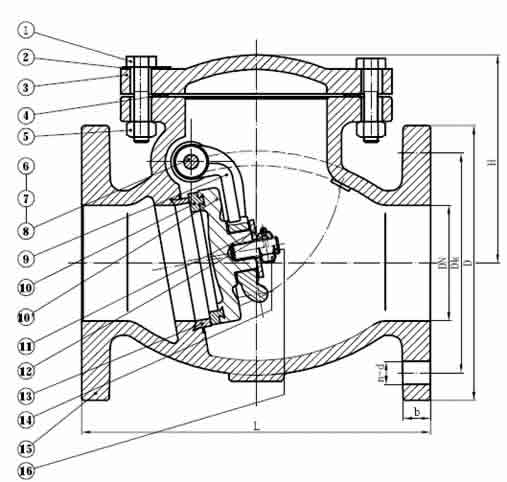

Dimension:


SIZE

L

Dk

D

b

n-￠d

H

2”

DN50

203

121

152

15.9

4-19

113

2.5”

DN65

216

140

178

17.5

4-19

133

3”

DN80

241

152.5

190

19

4-19

144

4”

DN100

292

190.5

228.6

24

8-19

168

5”

DN125

330

215.9

254

23.4

8-22

198

6”

DN150

356

241

279.4

25.4

8-22

217

8”

DN200

495

298.5

343

30

8-22

261

10”

DN250

622

365

406.4

31

12-25

287

12”

DN300

698

432

483

31.8

12-25

319

14”

DN350

787

476

533

35

12-29

443

16”

DN400

914

540

597

36.6

16-29

596
