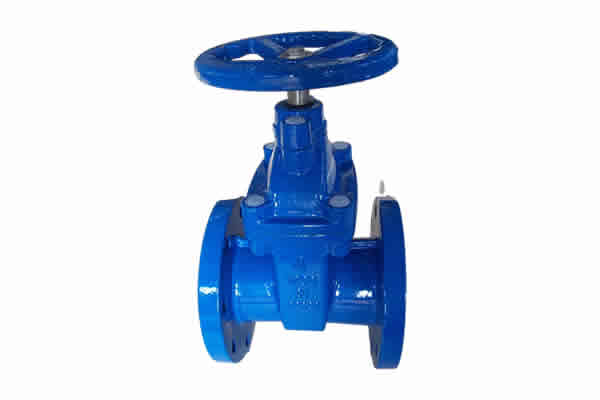

Resilient seated non-rising stem gate valve DIN3352 PN16

Resilient seated non-rising stem gate valve DIN3352 PN16

Design standard

DIN3352 F4

Flanged conform to

DIN EN1092-1 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃


0.00
0.00

Product Description

Design standard

DIN3352 F4

Flanged conform to

DIN EN1092-1 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃

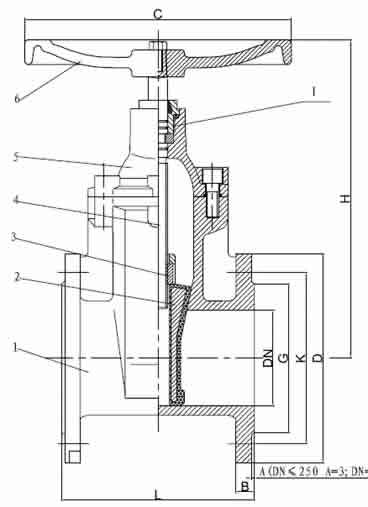

6

Hand wheel

Ductile iron

4

Shaft

SS420/B16

2

Disc

Ductile iron with NBR/EPDM

1

Body

Ductile iron

NO.

Parts

Material


Dimension:

SIZE

L    DIN3352

D

K

B

n-∅d

F4

F5

2”

DN50

150

250

165

125

19

4-19

2-1/2”

DN65

170

270

185

145

19

4-19

3”

DN80

180

280

200

160

19

8-19

4”

DN100

190

300

220

180

19

8-19

5”

DN125

200

325

250

210

19

8-19

6”

DN150

210

350

285

240

19

8-23

8”

DN200

230

400

340

295

20

12-23

10”

DN250

250

450

405

355

22

12-28

12”

DN300

270

500

460

410

24.5

12-28

14”

DN350

290

550

520

470

26.5

16-28

16”

DN400

310

600

580

525

28

16-31

18”

DN450

330

650

640

585

30

20-31

20”

DN500

350

700

715

650

31.5

20-34

24”

DN600

390

800

840

770

36

20-37
