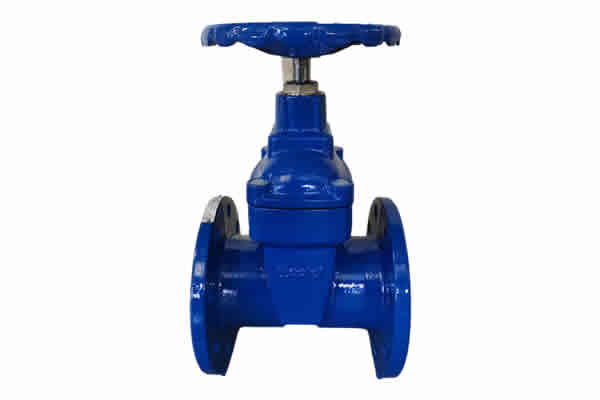

Resilient seated non-rising stem gate valve BS5163 PN16

Resilient seated non-rising stem gate valve BS5163 PN16

Design standard

BS5163

Flanged conform to

BS4504 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃


0.00
0.00

Product Description

Design standard

BS5163

Flanged conform to

BS4504 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃

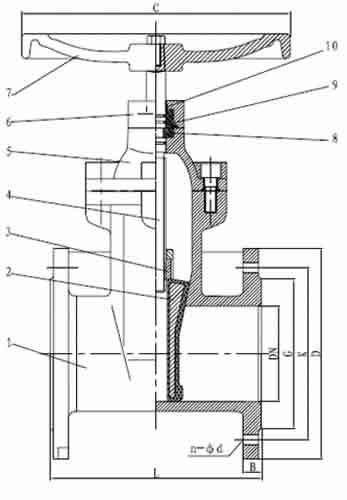

6

Hand wheel

Ductile iron

4

Shaft

SS420/B16

2

Disc

Ductile iron with NBR/EPDM

1

Body

Ductile iron

NO.

Parts

Material


Dimension:

SIZE

L



D

K

B

n-∅d

2”

DN50

178

165

125

19

4-19

2-1/2”

DN65

190

185

145

19

4-19

3”

DN80

203

200

160

19

8-19

4”

DN100

229

220

180

19

8-19

5”

DN125

254

250

210

19

8-19

6”

DN150

267

285

240

19

8-23

8”

DN200

292

340

292

20

12-23

10”

DN250

330

405

355

22

12-28

12”

DN300

356

460

410

24.5

12-28

14”

DN350

381

520

470

26.5

16-28

16”

DN400

406

580

525

28

16-31

18”

DN450

432

640

585

30

20-31

20”

DN500

457

715

650

31.5

20-34

24”

DN600

508

840

770

36

20-37
