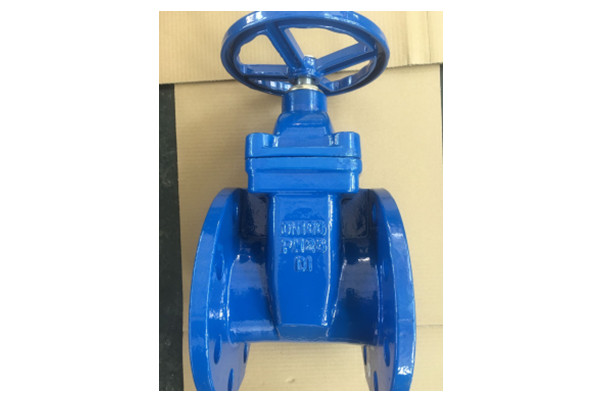

Resilient seated non-rising stem gate valve DIN3352/BS5163　PN25

Resilient seated non-rising stem gate valve DIN3352/BS5163　PN25



Design standard

DIN3352 /BS5163

Flanged conform to

 EN1092-1/2 PN25

Working pressure:

PN25

Working Tempt.

-10℃~120℃


0.00
0.00

Product Description


Design standard

DIN3352 /BS5163

Flanged conform to

 EN1092-1/2 PN25

Working pressure:

PN25

Working Tempt.

-10℃~120℃





6

Hand wheel

Ductile iron

4

Shaft

SS420/B16

2

Disc

Ductile iron with NBR/EPDM

1

Body

Ductile iron

NO.

Parts

Material

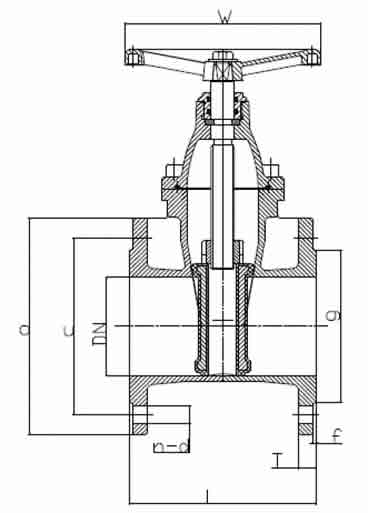

Dimension:


SIZE

L

O

C

N-￠d

T

DIN3352   F4

DIN3352   F5

BS5163

2”

DN50

150

250

178

165

125

4-￠19

19

2.5”

DN65

170

270

190

185

145

8-￠19

19

3”

DN80

180

280

203

200

160

8-￠19

19

4”

DN100

190

300

229

235

190

8-￠23

19

5”

DN125

200

325

254

270

220

8-￠28

19

6”

DN150

210

350

267

300

250

8-￠28

20

8”

DN200

230

400

292

360

310

12-￠28

22

10”

DN250

250

450

330

425

370

12-￠31

24.5

12”

DN300

270

500

356

485

430

16-￠31

27.5
