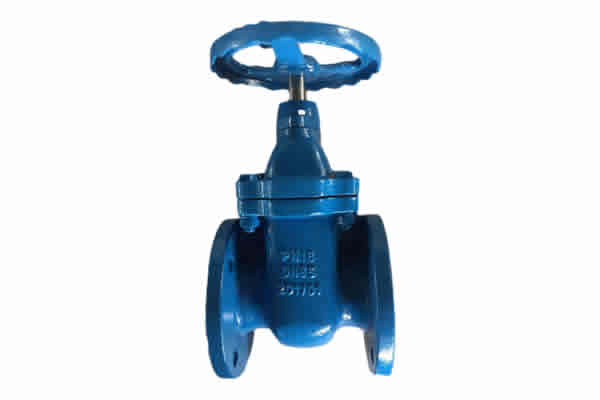

Metal seated non-rising stem gate valve DIN3352 PN16

Metal seated non-rising stem gate valve DIN3352 PN16

Design standard

EN1171

Flanged conform to

DIN EN1092-1 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃


0.00
0.00

Product Description

Design standard

EN1171

Flanged conform to

DIN EN1092-1 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃

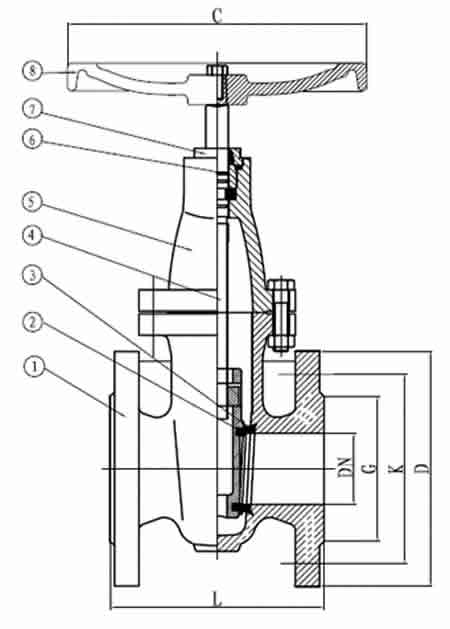

6

Hand wheel

Ductile iron

5

Wedge O-ring

Bronze

4

Shaft

SS420/B16

3

Body Seat

Bronze

2

Wedge

Cast iron

1

Body

Cast iron

NO.

Parts

Material


Dimension:




SIZE

L

D

K

N-￠d

C

2”

DN50

150

165

125

4-￠18

180

2.5”

DN65

170

185

145

4-￠18

180

3”

DN80

180

200

160

8-￠18

200

4”

DN100

190

220

180

8-￠18

250

5”

DN125

200

250

210

8-￠18

280

6”

DN150

210

285

240

8-￠22

280

8”

DN200

230

340

295

12-￠22

340

10”

DN250

250

405

355

12-￠26

340

12”

DN300

270

460

410

12-￠26

400

14”

DN350

290

520

470

12-￠26

500

16”

DN400

310

580

525

16-￠32

560

18”

DN450

330

640

585

20-￠32

560

20”

DN500

350

715

650

    20-￠35

650

24”

DN600

390

840

770

    20-￠38

650
