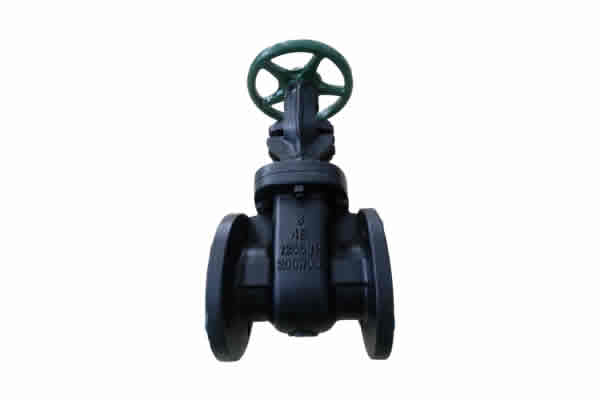

Metal seated OS&Y stem gate valve MSS SP-70 PN16

Metal seated OS&Y stem gate valve MSS SP-70 PN16




Rising stem gate valves are commonly used in general fluid control applications, especially in places with high requirements for valve status. Due to the visibility of the exposed stem, the operator can visually judge the opening and closing status of the valve, and take corresponding control measures in a timely manner. This makes the rising stem gate valve easier to operate and maintain in emergency situations.


0.00
0.00

Product Description



Rising stem gate valves are commonly used in general fluid control applications, especially in places with high requirements for valve status. Due to the visibility of the exposed stem, the operator can visually judge the opening and closing status of the valve, and take corresponding control measures in a timely manner. This makes the rising stem gate valve easier to operate and maintain in emergency situations.


Technical:

Design standard

MSS SP-70

Flanged conform to

ANSI B16.10

Working pressure:

200PSI

Working Tempt.

-10℃~120℃

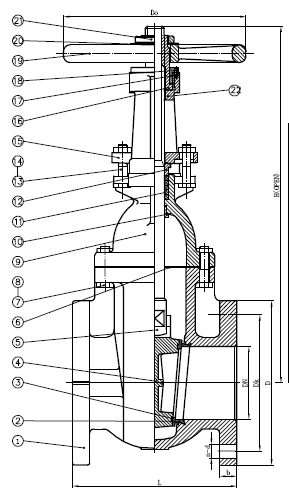

Material:

6

Hand wheel

Ductile iron

5

Wedge ring

ASTM A126 B

4

Shaft

SS420/B16

3

Body Seat ring

ASTM B62

2

Wedge

ASTM A126 B

1

Body

ASTM A126 B

NO.

Parts

Material


Dimension:

SIZE

L

D2

D3

N-￠d

D4

H

2”

DN50

178

121

152

4-￠18

178

380

2.5”

DN65

190

140

178

4-￠18

178

430

3”

DN80

203

152.5

190

8-￠18

200

485

4”

DN100

229

190.5

228.6

8-￠18

254

615

5”

DN125

254

215.9

254

8-￠18

300

700

6”

DN150

267

241.5

279

8-￠22

300

835

8”

DN200

292

298.5

343

12-￠22

348

1010

10”

DN250

330

362

406

12-￠26

400

1220

12”

DN300

356

432

483

12-￠26

457

1435

14”

DN350

381

476

533

12-￠29

508

1655

16”

DN400

406

540

597

16-￠29

558

1825

18”

DN450

432

578

635

16-￠32

610

2020

20”

DN500

457

635

699

20-￠32

640

2290

24”

DN600

508

749

813

20-￠35

762

3360

30”

DN750

610

914

984

28-￠35

813

3665

36”

DN900

711

1086

1168

32-￠42

813

3920
