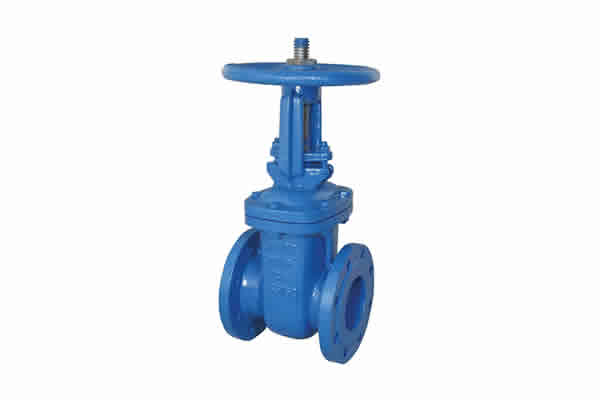

Metal seated OS&Y gate valve BS5150 PN16

Metal seated OS&Y gate valve BS5150 PN16

Rising stem gate valves are commonly used in general fluid control applications, especially in places with high requirements for valve status. Due to the visibility of the exposed stem, the operator can visually judge the opening and closing status of the valve, and take corresponding control measures in a timely manner. This makes the rising stem gate valve easier to operate and maintain in emergency situations.


0.00
0.00

Product Description

Rising stem gate valves are commonly used in general fluid control applications, especially in places with high requirements for valve status. Due to the visibility of the exposed stem, the operator can visually judge the opening and closing status of the valve, and take corresponding control measures in a timely manner. This makes the rising stem gate valve easier to operate and maintain in emergency situations.


Technical  Parameter:

Design standard

BS5150

Flanged conform to

BS4504 PN16

Working pressure:

PN16

Working Tempt.

-10℃~200℃




Main Material:

6

Hand wheel

Ductile iron

5

Disc O-ring

Bronze

4

Shaft

SS420/B16

3

Body Seat

Bronze

2

Disc

Cast iron

1

Body

Cast iron

NO.

Parts

Material

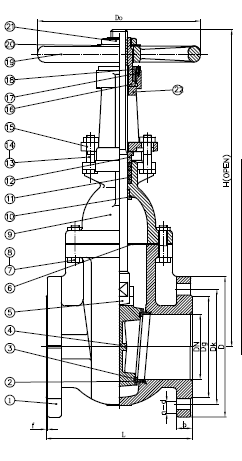

Dimension:(mm)

SIZE

L

D

K

N-￠d

H

2”

DN50

178

165

125

4-￠18

380

2.5”

DN65

190

185

145

4-￠18

430

3”

DN80

203

200

160

8-￠18

485

4”

DN100

229

220

180

8-￠18

615

5”

DN125

254

250

210

8-￠18

700

6”

DN150

267

285

240

8-￠22

835

8”

DN200

292

340

295

12-￠22

1010

10”

DN250

330

405

355

12-￠26

1220

12”

DN300

356

460

410

12-￠26

1435

14”

DN350

381

520

470

16-28

1655

16”

DN400

406

580

525

16-31

1825

18”

DN450

432

640

585

20-31

2020

20”

DN500

457

715

650

20-34

2290

24”

DN600

508

840

770

20-37

3665
