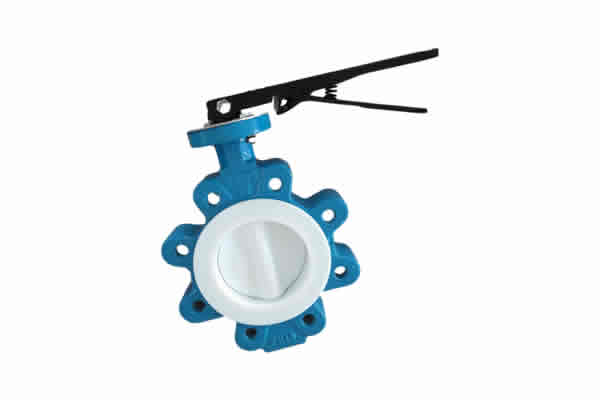

Fully Lug butterfly valve 2PC body PTFE seat, PN16/25

Fully Lug butterfly valve 2PC body PTFE seat, PN16/25

PTFE lining wafer type butterfly valve is normally applicable for acids and alkalis pipeline, such as petroleum, chemical, and food. It has a strong anti-corrosion function. Wafer type butterfly valve is 100% bi-directional tight shut-off. Installation without restriction in direction of flow.
Stainless steel butterfly valve is Low pressure loss and reduced energy costs; Easy to clean and disinfect for potable water systems etc.


0.00
0.00

Product Description

PTFE lining wafer type butterfly valve is normally applicable for acids and alkalis pipeline, such as petroleum, chemical, and food. It has a strong anti-corrosion function. Wafer type butterfly valve is 100% bi-directional tight shut-off. Installation without restriction in direction of flow.
Stainless steel butterfly valve is Low pressure loss and reduced energy costs; Easy to clean and disinfect for potable water systems etc.




Technical Parameter；

Design standard

EN593,API609,BS5155,MSS SP-67

Working pressure:

PN16/25

Shell Test

2.4MPa,3.75MPa

Seal Test

1.76MPa,2.75MPa

Working Temperature:

-20℃~200℃

PTFE


Main Material:

7

O-Ring

EPDM

6

Bushing

PTFE

5

Shaft

SS410/SS304/SS316/SS431/SS630

4

Seat Energizer

Silicone

3

Body Seat

PTFE

2

Disc

CF8/CF8M/CF3M coated PTFE

1

Body

Ductile iron

NO.

Parts

Material

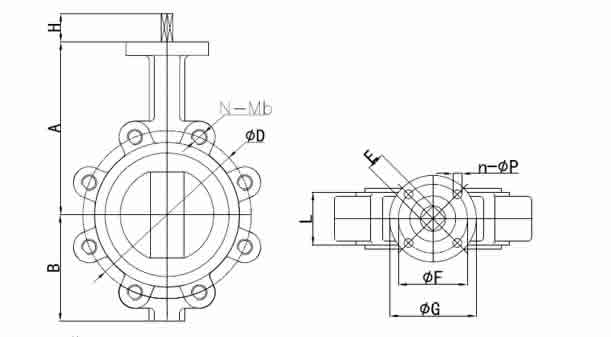

Dimension:(mm)

SIZE

L

F

G

N-￠H

ISO5211

A

H

B

2”

DN50

43

70

90

4-￠10

F07

140

14

74

2.5”

DN65

46

70

90

4-￠10

F07

150

14

80

3”

DN80

46

70

90

4-￠10

F07

160

14

90

4”

DN100

52

70

90

4-￠10

F07

178

14

118

5”

DN125

56

70

90

4-￠10

F07

190

17

131

6”

DN150

56

70

90

4-￠10

F07

200

17

145

8”

DN200

60

102

125

4-￠12

F10

240

22

173

10”

DN250

68

102

125

4-￠12

F10

273

22

208

12”

DN300

78

102

125

4-￠12

F10

310

22

244

14”

DN350

78

102

125

4-￠12

F10/F12

335

22

280

16”

DN400

102

140

175

4-￠18

F14

385

36

319

18”

DN450

114

140

175

4-￠18

F14

430

36

365

20”

DN500

127

140

175

4-￠18

F14/F16

460

36

375

24”

DN600

154

165

210

4-￠23

F16

520

46

446
