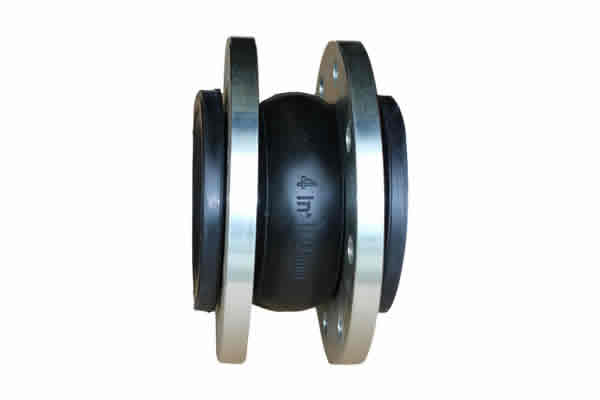

Single sphere expansion joint flanged end PN16

Single sphere expansion joint flanged end PN16

Bursting pressure

645psi

Working temperature

-10℃~120℃

Working Pressure:

PN10/16/25


0.00
0.00

Product Description

Bursting pressure

645psi

Working temperature

-10℃~120℃

Working Pressure:

PN10/16/25

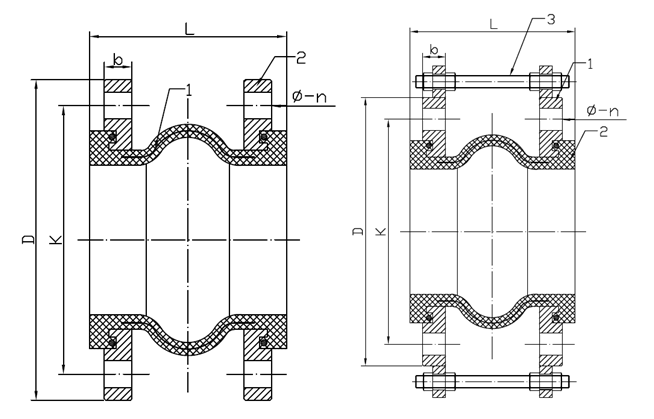

Main Material:

3

Tie rods

Carbon steel

2

Rubber

EPDM/NBR

1

Flange

Forged steel

NO.

Parts

Material


Dimension: (mm)

SIZE

L

Axial displacement (mm)

Lateral   displacement

(mm)

Angle of   deflection

Extension

Compression

2"

DN50

105

7

10

10

150

2.5”

DN65

115

7

13

11

150

3”

DN80

135

8

15

12

150

4”

DN100

150

10

19

13

150

5”

DN125

165

12

19

13

150

6”

DN150

180

12

20

14

150

8”

DN200

210

16

25

22

150

10”

DN250

230

16

25

22

150

12”

DN300

245

16

25

22

150

14’

DN350

255

16

25

22

150

16”

DN400

255

16

25

22

150

18”

DN450

255

16

25

22

150

20”

DN500

255

16

25

22

150

24”

DN600

260

16

25

22

150

28”

DN700

260

16

25

22

150

30”

DN750

260

16

25

22

150

32”

DN800

260

16

25

22

150

36”

DN900

260

16

25

22

150

40”

DN1000

260

18

26

24

150

48”

DN1200

260

18

26

24

150
