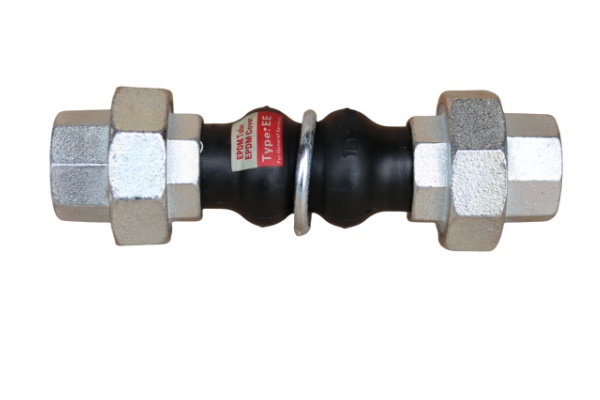

threaded Flexible rubber expansion joint PN10/16

threaded Flexible rubber expansion joint PN10/16

Working pressure

150psi

Bursting pressure

450psi

Working temperature

-10℃~120℃

Working Pressure:

PN10


0.00
0.00

Product Description

Working pressure

150psi

Bursting pressure

450psi

Working temperature

-10℃~120℃

Working Pressure:

PN10

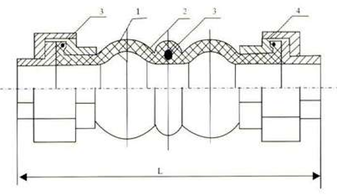

Main Material:

4

Threaded uinon

Forged cast iron

3

Strength ring

Steel wire

2

lining

Nylon cord fabric

1

Main body

EPDM or NBR

NO.

Parts

Material

Dimension: (mm)



Axial displacement

Lateral displacement(mm)

Angle of deflection

SIZE

L

Extension(mm)

Compression(mm)

1/2”

DN15

200

5~6

22

22

450

3/4”

DN20

200

5~6

22

22

450

1”

DN25

200

5~6

22

22

450

1-1/4”

DN32

200

5~6

22

22

450

1-1/2”

DN40

200

5~6

22

22

450

2”

DN50

200

5~6

22

22

450

2-1/2”

DN65

200

5~6

22

22

450

3”

DN80

240

5~6

22

22

450
