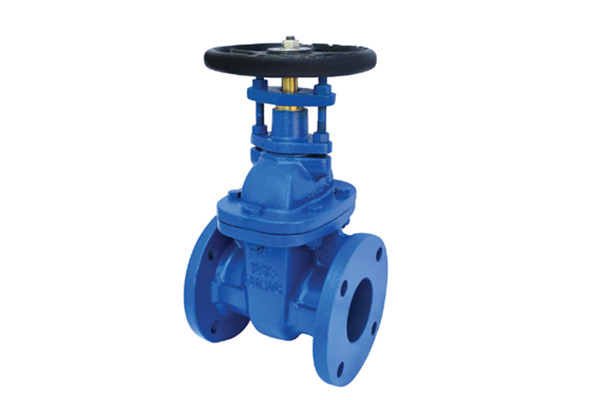

Metal seated NON-Rising stem gate valve MSS SP-70 125LBS

Gate valve is a type of shut-off valve used to connect or cut off the medium in the pipeline. With Low fluid resistance, applicable pressure and temperature range, bi-directional flow, and good sealing performance.

List price： 0.00

Price： 0.00

Product information

Product Description

Technical:

Design standard	MSS SP-70
Flanged conform to	ANSI B16.10(125LB)
Face to face conform to	ANSI B16.10(125LB)
Working pressure:	200PSI
Working Tempt.	-10℃~120℃
Application:	Water, oil ,gas

Main Material:

7	Hand wheel	Ductile iron
6	Wedge	ASTM A126 B
5	Shaft	SS420/ BRASS B16
4	Wedge seat ring	ASTM B62
3	Body Seat ring	ASTM B62
2	Wedge	ASTM A126 B
1	Body	ASTM A126 B
NO.	Parts	Material

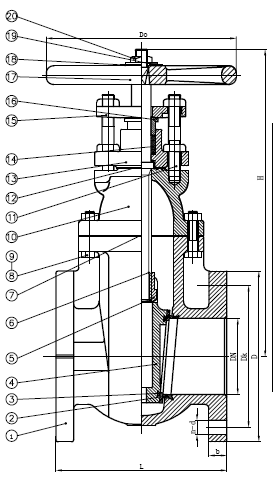

Dimension: (mm)

SIZE		L	Dk	D	N-￠d	H	D0
2”	DN50	178	121	152	4-￠19	289	178
2.5”	DN65	190.5	140	178	4-￠19	323	178
3”	DN80	203	152.5	190	4-￠19	338	200
4”	DN100	228.6	190.5	228.6	8-￠19	411	254
5”	DN125	254	215.9	254	8-￠22	503	300
6”	DN150	266.7	241.5	279	8-￠22	558	300
8”	DN200	292	298.5	343	8-￠22	650	348
10”	DN250	330	362	406	12-￠25	770	400
12”	DN300	356	432	483	12-￠25	861	457
14”	DN350	381	476	533	12-￠29	991	508
16”	DN400	406	540	597	16-￠29	1058	553
18”	DN450	432	578	635	16-￠32	1206	610
20”	DN500	457	635	699	20-￠32	1276	640
24”	DN600	508	749	813	20-￠35	1466	762
30”	DN750	610	914	984	28-￠35	1845	813
36”	DN900	711	1086	1168	32-￠42	2124	813
