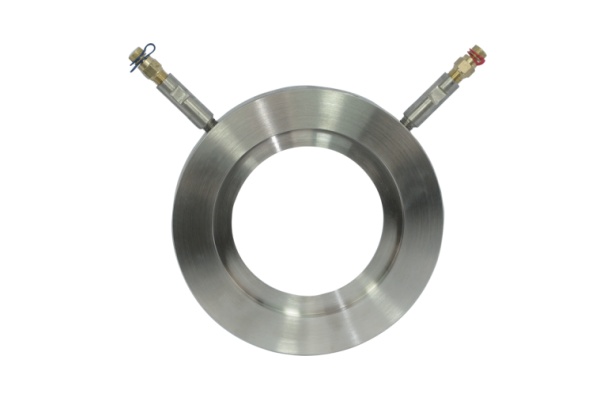

measurement station, metering station, PN16/25

measurement station, metering station, PN16/25

Specification:

Pressure Rating: PN16/25

Working Medium: Water

Working Temperature: ≤150℃


0.00
0.00

Product Description

Specification:

Pressure Rating: PN16/25

Working Medium: Water

Working Temperature: ≤150℃

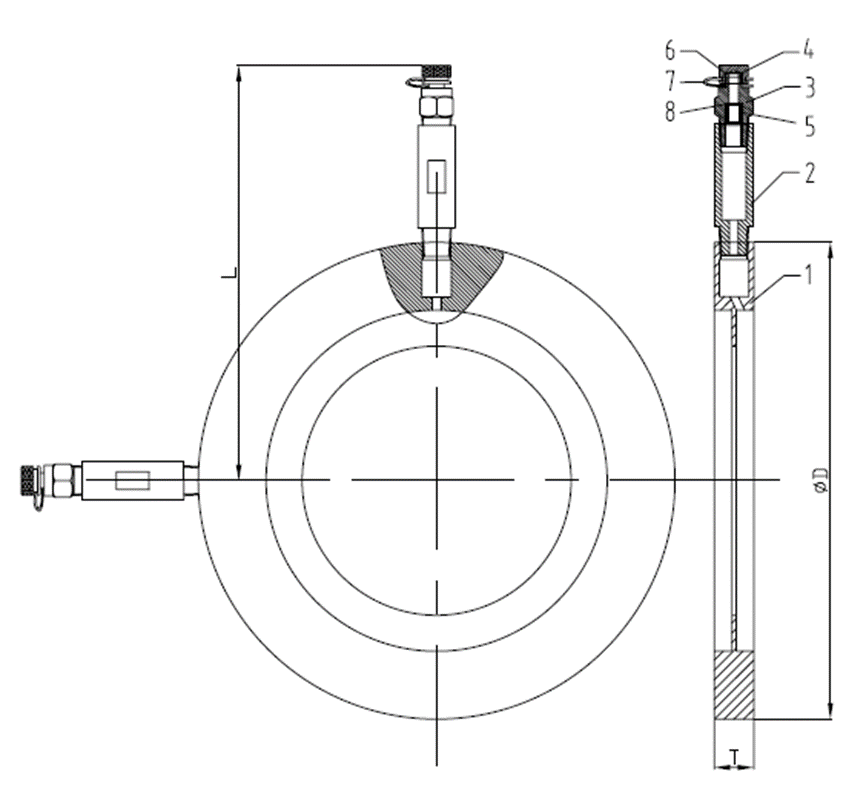

NO.

NAME

Material

1

Orifice   and Carrier

SS304/SS316

2

Extension   Tube

SS304/SS316

3

Pressure   Test Point

DZR   Brass CW602N

Dimensions (mm):PN16

SIZE

L

∅D

T

Flow (kv)

2-1/2”

DN65

112

127

18

151

3”

DN80

118

142

18

203

4”

DN100

125

162

18

351

5”

DN125

135

192

18

550

6”

DN150

145

218

18

765

8”

DN200

165

273

18

1354

10”

DN250

185

329

18

2103

12”

DN300

205

384

18

3009

14”

DN350

222

444

21

2734

16”

DN400

240

495

21

3507

18”

DN450

261

555

21

4543

20”

DN500

283

617

21

5603

24”

DN600

325

734

25

8111

Dimensions (mm):PN25

SIZE

L

∅D

T

Flow (kv)

2-1/2”

DN65

112

127

18

151

3”

DN80

118

142

18

203

4”

DN100

125

168

18

351

5”

DN125

135

194

18

550

6”

DN150

145

224

18

765

8”

DN200

165

284

18

1354

10”

DN250

185

340

18

2103

12”

DN300

205

400

18

3009

14”

DN350

222

457

21

2734

16”

DN400

240

514

21

3507

18”

DN450

261

564

21

4543

20”

DN500

283

624

21

5603

24”

DN600

325

741

25

8111
