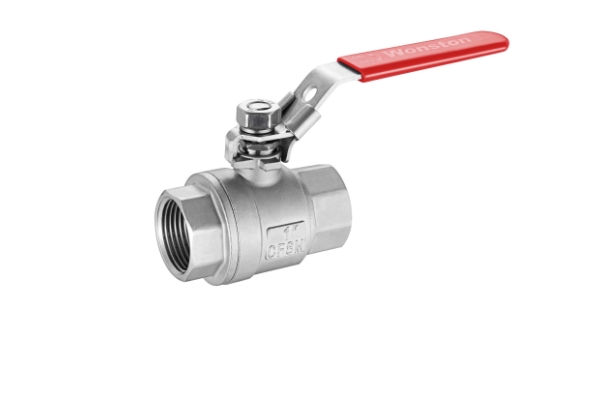

2pcs ball valve threaded end PN64

2pcs ball valve threaded end PN64

Design to ANSI B16.34

Working pressure: PN64

Adjustable packing gland, bottom loaded, blow-out proof stem;

Threaded to: NPT, BSPT, BSPP, DIN2999

Inspection standard: API598;

Face to face to: DIN3202-M3;

Working Medium: Water, Oil, Gas

Working Temperature: -20℃~160℃


0.00
0.00

Product Description

Design to ANSI B16.34

Working pressure: PN64

Adjustable packing gland, bottom loaded, blow-out proof stem;

Threaded to: NPT, BSPT, BSPP, DIN2999

Inspection standard: API598;

Face to face to: DIN3202-M3;

Working Medium: Water, Oil, Gas

Working Temperature: -20℃~160℃

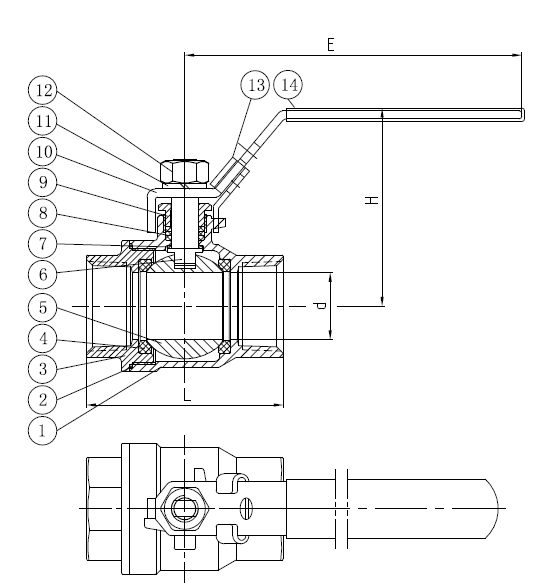

Materials:

NO.

NAME

Material

1

Body

WCB/CF8M

2

Bonnet

WCB/CF8M

3

Stem

SS304/SS316

4

Ball

SS304/SS316

5

Seat

PTFE

6

Packing

PTFE

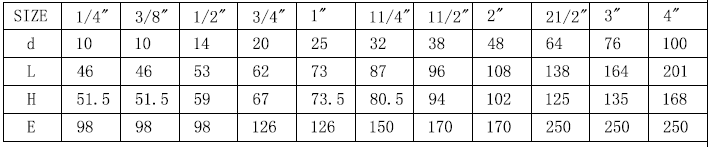

Dimension: (mm)
