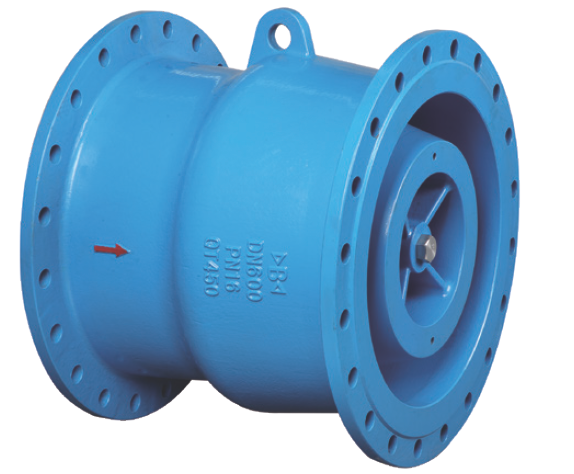

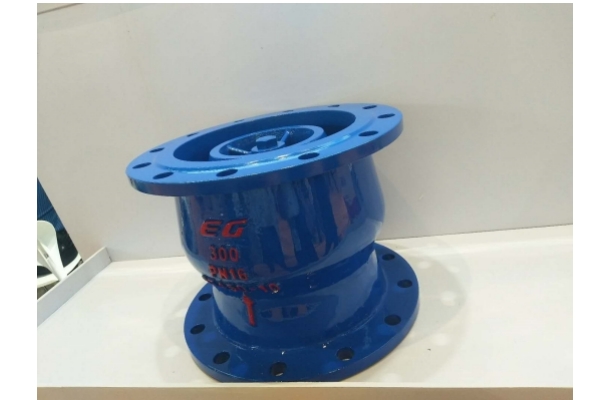

nozzle check valve PN16

nozzle check valve PN16

This series of nozzle type check valves  the quick closing check valve, mainly composed of parts such as valve body, valve seat, valve plate, guide diffuser, spring, etc. Mainly installed at the outlet of the pump to prevent water hammer impact. At the same time, the guide diffuser has the advantage of low loss, effectively reducing the energy consumption of water pump operation.


Specification:

Pressure Rating: PN16

Working Medium: Water

Working Temperature: ≤120℃

Flange Standard: EN1092-2 PN16, ANSI B16.10


0.00
0.00

Product Description

This series of nozzle type check valves  the quick closing check valve, mainly composed of parts such as valve body, valve seat, valve plate, guide diffuser, spring, etc. Mainly installed at the outlet of the pump to prevent water hammer impact. At the same time, the guide diffuser has the advantage of low loss, effectively reducing the energy consumption of water pump operation.


Specification:

Pressure Rating: PN16

Working Medium: Water

Working Temperature: ≤120℃

Flange Standard: EN1092-2 PN16, ANSI B16.10


Main Material:

Size: 2"-48"
Body: ductile iron
Disc: SS304 (2"-10"),
Spring: SS304
Shaft busing:Brass
seat: SS304

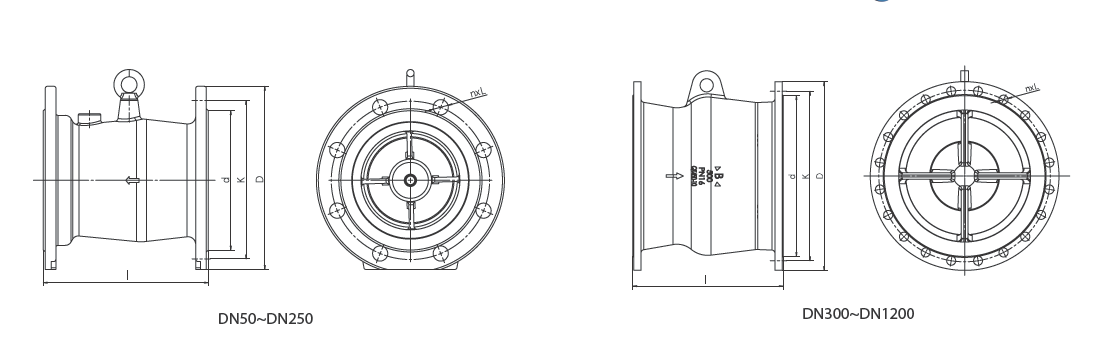

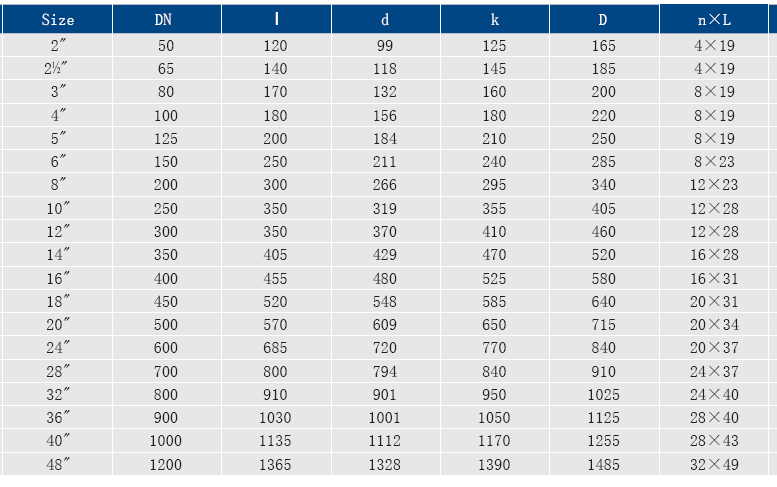

Dimension:(MM)
