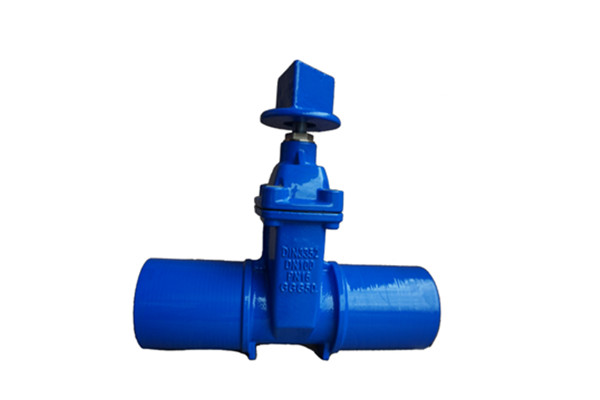

spigot end resilient non-rising stem gate valve ductile iron PN16

spigot end resilient non-rising stem gate valve ductile iron PN16

Gate valve is a type of shut-off valve used to connect or cut off the medium in the pipeline. With Low fluid resistance, applicable pressure and temperature range, bi-directional flow, and good sealing performance.


0.00
0.00

Product Description

Gate valve is a type of shut-off valve used to connect or cut off the medium in the pipeline. With Low fluid resistance, applicable pressure and temperature range, bi-directional flow, and good sealing performance.


Technical:

Design standard

DIN3352 F5/AWWA C509

Face to face :

DIN3202 F5

Test standard:

DIN3230 or JB9092

Working pressure:

PN16

Working   Tempt.

NBR:  -10℃~80℃

EPDM:  -10℃~120℃

Main Material:

13

Bolts

A2-70

12

Stem

SS420

11

Hand wheel

Ductile iron

10

Gland

Ductile iron

9

O-ring

EPDM

8

O-ring

EPDM

7

Splint collar

Brass

6

Bonnet

Ductile iron

5

Bolts

Steel 8.8+WAX

4

Gasket

EPDM

3

Stem nug

Brass

2

Wedge

Ductile iron wrapped with NBR/EPDM

1

Body

Ductile iron

NO.

Parts

Material

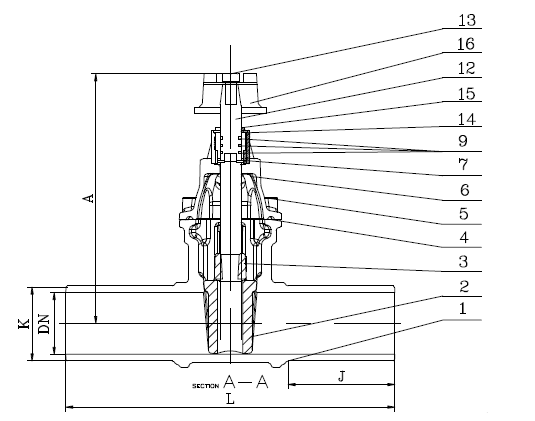

Dimension: (mm)

SIZE

L

A

J

K(  ASTM standard pipe)

Weight(KGS)

2”

DN50

270

215

90

60.33

5.2

2.5”

DN65

300

250

100

73.02

5.8

3”

DN80

305

280

105

88.9

7.1

4”

DN100

365

320

120

114.3

11.5

6”

DN150

405

395

140

168.28

20

8”

DN200

440

530

150

219.08

36.4

10”

DN250

635

610

180

273.05

55

12”

DN300

715

670

200

323.85

74
