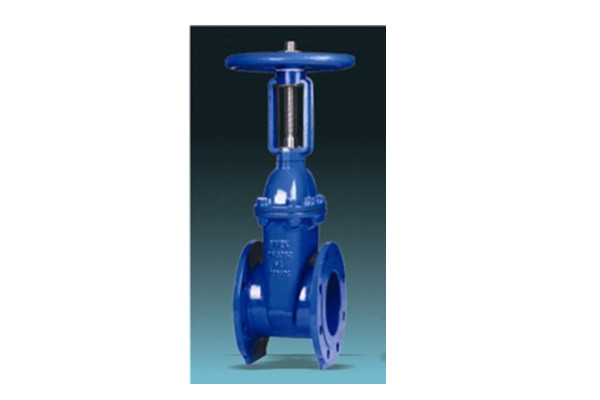

Metal seated OS&Y stem gate valve DIN3352 PN16

Metal seated OS&Y stem gate valve DIN3352 PN16

Design standard

EN1171

Flanged conform to

DIN EN1092-1 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃


0.00
0.00

Product Description

Design standard

EN1171

Flanged conform to

DIN EN1092-1 PN16

Working pressure:

PN16

Working Tempt.

-10℃~120℃


Main Material:

6

Hand wheel

Ductile iron

5

Wedge O-ring

Bronze

4

Shaft

SS420/BRASS B16

3

Body Seat

Bronze

2

Wedge

Ductile iron

1

Body

Cast iron

NO.

Parts

Material

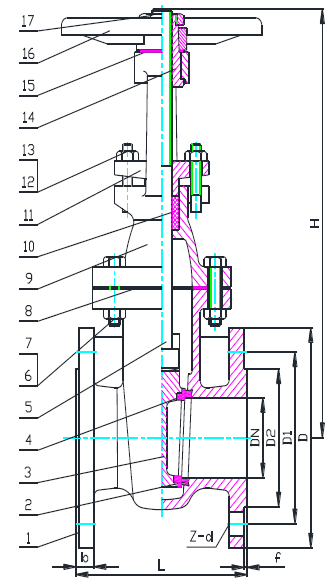

Dimension:

SIZE

L

D

D1

N-￠d

H

2”

DN50

150

165

125

4-￠19

289

2.5”

DN65

170

185

145

4-￠19

340

3”

DN80

180

200

160

8-￠19

387

4”

DN100

190

220

180

8-￠19

450

5”

DN125

200

250

210

8-￠19

531

6”

DN150

210

285

240

8-￠23

594

8”

DN200

230

340

295

12-￠23

737

10”

DN250

250

405

355

12-￠28

880

12”

DN300

270

460

410

12-￠28

1009

14”

DN350

290

520

470

16-￠28

1154

16”

DN400

310

580

525

16-￠31

1283
