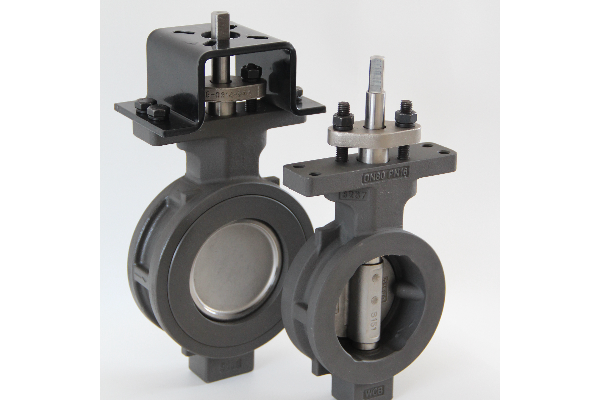

wafer type high performance butterfly valve　WCB/CF8M body, CLASS150

wafer type high performance butterfly valve　WCB/CF8M body, CLASS150

Design to

API609

Flange drilled to

ASME B16.5

Inspection to:

API598

Working   Temperature:

-10℃~150℃

PTFE


0.00
0.00

Product Description

Design to

API609

Flange drilled to

ASME B16.5

Inspection to:

API598

Working   Temperature:

-10℃~150℃

PTFE



Main material:

NO.

Name of Parts

Material

1

Valve Body

WCB/CF8M/CF3M

2

Clamping ring

#20/SS304/SS316

3

Seat ring

RPTFE

4

Shaft

17-4PH

5

Shaft Bearing

316-RPTFE

6

Filler Gasket

SS316

7

Filler

PTFE

8

Gland

SS304/SS316

9

Pin

17-4PH

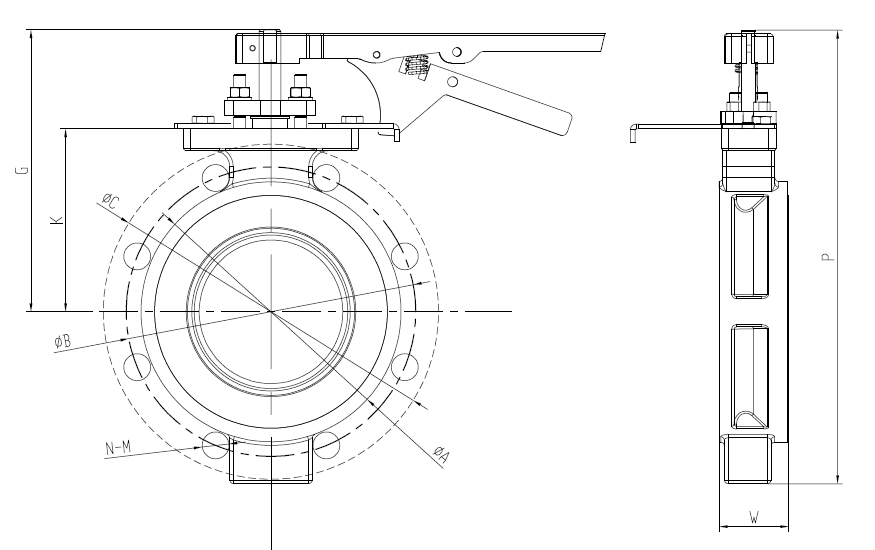

Dimensions: (mm):  CLASS150

SIZE

L

∅d

n-∅d

2”

DN50

43

120.7

4-M16

2-1/2”

DN65

49

139.7

4-M16

3”

DN80

49

152.4

4-M16

4”

DN100

54

190.5

8-M16

5”

DN125

57

215.9

8-M20

6”

DN150

57

241.3

8-M20

8”

DN200

64

298.5

8-M20

10”

DN250

71

362

12-M24

12”

DN300

81

431.8

12-M24

14”

DN350

92

476.3

12-M27

16”

DN400

102

539.8

16-M27

18”

DN450

114

577.9

16-M30

20”

DN500

127

635

20-M30

24”

DN600

154

749.3

20-M33

30”

DN750

167

914.4

28-M33

36”

DN900

184

1085.8

32-M39

42”

DN1050

222

1257

36-M39

48”

DN1200

254

1422

44-M39
