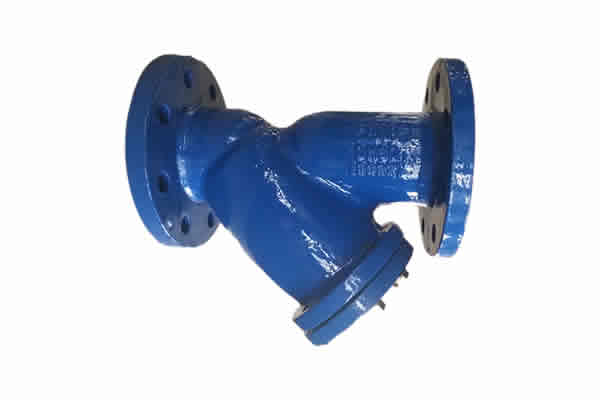

Y-strainer ANSI PN16

Y-strainer ANSI PN16

Design standard

ANSI

Flanged conform to

ANSI B16.1

Working pressure:

200PSI

Working Tempt.

-10℃~120℃


0.00
0.00

Product Description

Design standard

ANSI

Flanged conform to

ANSI B16.1

Working pressure:

200PSI

Working Tempt.

-10℃~120℃

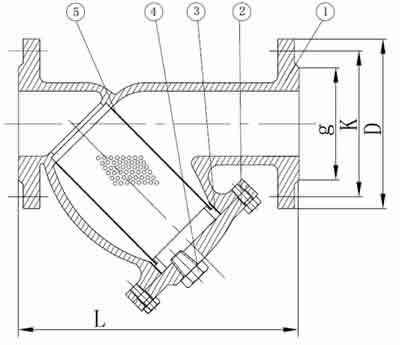

5

Screen

SS304

4

bolt

Carbon steel

3

Plug

Carbon steel

2

Cover

Cast ironDuctile iron

1

Body

Cast iron/Ductile iron

NO.

Parts

Material

STANDARD SCREEN

SIZE

Opening

Std:   mesh/perf.

2”~3”

0.045”

3/64”

4”~20”

0.125”

1/8”










Dimension:

SIZE

L

g

K

N-￠d

D

1.5”

DN40

165

73.15

98.55

4-￠15.75

127

2”

DN50

225

91.95

121

4-￠19

152

2.5”

DN65

273

104.65

140

4-￠19

178

3”

DN80

292

127

152

4-￠19

191

4”

DN100

352

157.23

191

8-￠19

229

5”

DN125

420

185.67

216

8-￠22

254

6”

DN150

470

215.90

241

8-￠22

279

8”

DN200

543

269.75

298

8-￠22

343

10”

DN250

660

323.85

362

12-￠25

406

12”

DN300

762

381

432

12-￠25

483

14”

DN350

949

412.75

476

12-￠29

533

16”

DN400

1079.5

469.90

540

16-￠29

597

18”

DN450

1168

533.4

578

16-￠32

635

20”

DN500

1242

584.2

635

20-￠32

700

24”

DN600

1440

692.15

749

20-￠35

815
