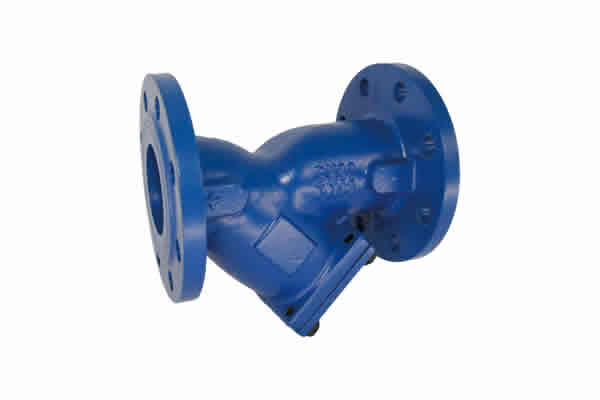

Y-strainer DIN3352 F1 PN16

Y-strainer DIN3352 F1 PN16

Design standard

DIN3352

Face to face

DIN3352 F1

Working pressure:

PN16

Flanged to

DIN EN 1092-1 PN16

Test to

API598


0.00
0.00

Product Description

Design standard

DIN3352

Face to face

DIN3352 F1

Working pressure:

PN16

Flanged to

DIN EN 1092-1 PN16

Test to

API598

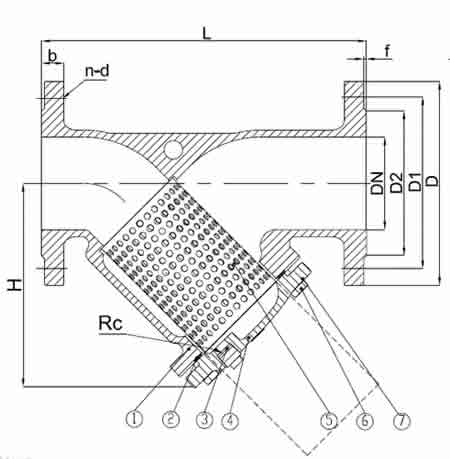

7

Washer

Carbon steel

6

Bolt

Carbon steel

5

Screen

PTFE

4

Bonnet

SS304

3

Plug

Carbon steel

2

Gasket

EPDM

1

Body

Cast iron

NO.

Parts

Material



Dimension:

SIZE

L

D2

D1

D

n-￠d

H

2”

DN50

230

102

125

165

4-18

158

2.5”

DN65

290

122

145

185

4-18

178

3”

DN80

310

138

160

200

8-18

199

4”

DN100

350

158

180

220

8-18

231

5”

DN125

400

188

210

250

8-18

273

6”

DN150

480

212

240

285

8-23

332

8”

DN200

600

268

295

340

12-23

430

10”

DN250

730

320

355

405

12-27

502

12”

DN300

850

378

410

460

12-27

570

14”

DN350

980

438

470

520

16-27

643

16”

DN400

1100

490

525

580

16-30

726

18”

DN450

1200

548

585

640

20-30

757

20”

DN500

1250

609

650

715

20-30

873

24”

DN600

1450

702

770

840

20-30

1027
