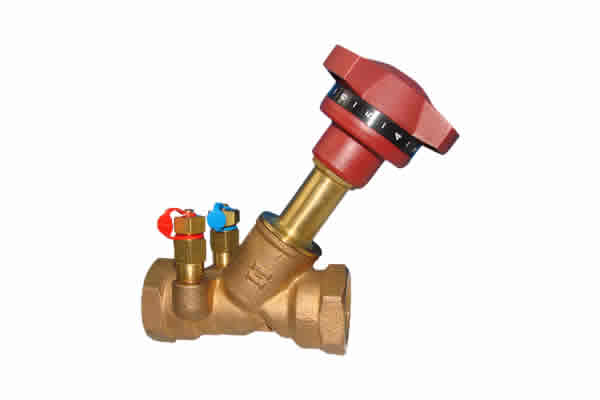

Bronze Balancing valve threaded end PN25

Bronze Balancing valve threaded end PN25

Design standard

BS7350

Working pressure:

PN25

Threaded to

BS21, NPT, DIN2999


0.00
0.00

Product Description

Design standard

BS7350

Working pressure:

PN25

Threaded to

BS21, NPT, DIN2999






Main Material:

Test Point

DZR Brass

Cap

PA

Hand wheel

PA

Shaft

DZR Brass

Disc retaining ring

DZR Brass

Disc

DZR Brass

Disc face

DZR Brass (1”-2”)

Disc face

PTFE (1/2”-3/4”)

Body

Bronze

Parts

Material

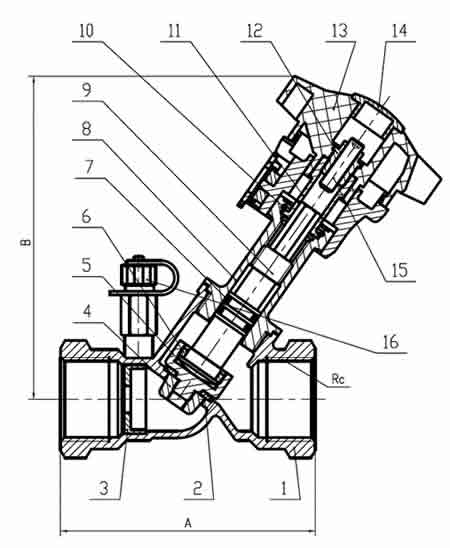

Dimension:

SIZE

A

B

Flow(kv)

Kvs

1/2”

DN15

87

105

1.72

2.2

3/4”

DN20

96

106

2.97

4.6

1”

DN25

100

127

4.75

8.5

1-1/4”

DN32

114

128

10.25

16.7

1-1/2”

DN40

125

143

16.83

26.1

2”

DN50

146

144

27.26

43.2
